Conformal Coating for Electronics – Manual and Automated Processes

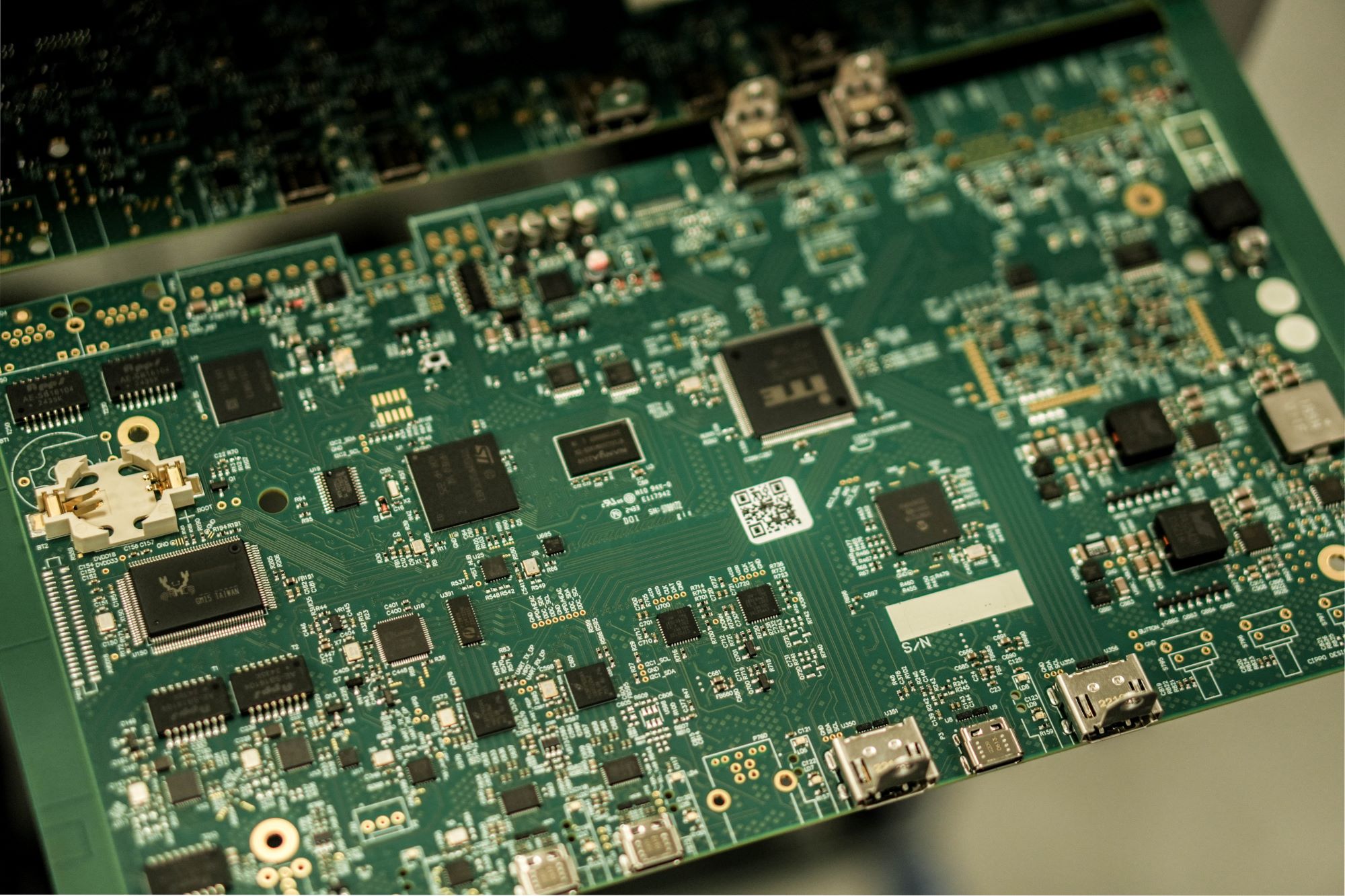

PCB conformal coating is a key step in ensuring long-term reliability in electronic assemblies. The purpose of conformal coating is to protect assembled printed circuit boards from environmental influences and to extend the operational lifetime of electronic products.
When properly applied, conformal coating provides protection against moisture, humidity, dust, temperature fluctuations and other contaminants. It also reduces the risk of corrosion and short circuits. This protection is particularly important in industrial applications, outdoor environments, or systems exposed to increased mechanical or environmental stress.
Targeted and Full-Surface Protection
Conformal coating is applied according to customer requirements and is primarily performed through manual coating processes. This technology enables the precise coating of the entire PCB surface assembled with both SMT and THT components, or the selective protection of specific areas of the board.
The main advantage of manual coating lies in its flexibility, which makes it particularly suitable for prototype production and smaller series. During the process, special attention is given to ensuring that the areas requiring protection receive uniform coating coverage, while connectors, contact points and other functional interfaces remain accessible when necessary.
Automated Coating in Serial Production
For higher production volumes, automated conformal coating is carried out using the Nordson Conexis CX-3040 coating system. This automated equipment ensures uniform and repeatable coating quality while improving production efficiency.
Automated conformal coating for electronics allows accurate control of coating thickness and enables fast processing of larger quantities of PCBs. The controlled application process ensures consistent coverage across all boards, supporting stable and reproducible manufacturing results.
Preventive Protection for Reliable Operation
Conformal coating is typically applied as a preventive protection step after soldering and testing processes have been completed. Properly implemented coating significantly reduces warranty risks, lowers the probability of field failures, and contributes to long-term operational reliability.
The type and thickness of the coating are selected according to the intended operating environment and the technical requirements of the product. Documented coating procedures ensure reproducible quality and long-term stability of electronic assemblies.
At ElektroMont, conformal coating is not merely an additional service but an integral part of reliable electronics manufacturing.
